3-10 Tons of Ice Per 24hr
Automatic ICE™ Systems uses Vogt® HFO5 and HFO-10 series ice machines in our medium capacity, 3-10 ton per day, ice-making systems.
Click HERE to learn about The Vogt® Advantage
The Future of Ice Machine Controls:
Vogt® Ice Controls Engineer Baptiste Sauvage previews Vogt’s® new ice machine controls.

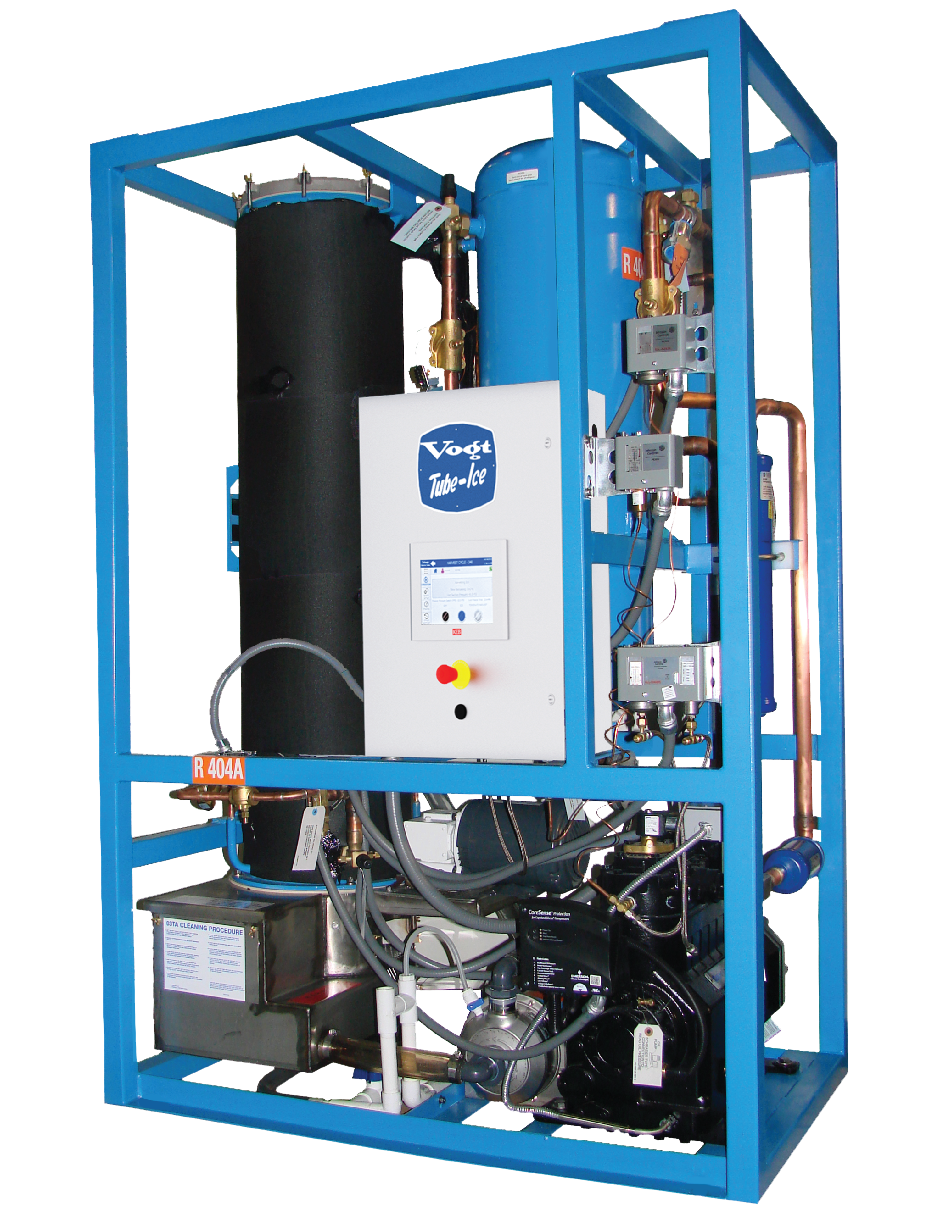

The HFO3 Series Tube-Ice® Machine
HFO3-1” & HFO3-1 1/4”
The HFO3 Series Tube-Ice® machine continues the Vogt® tradition of providing long-lasting machine reliability, delivered capacity, and lower energy cost solutions. This 3-ton of ice per day machine utilizes HFO refrigerants with low GWP and zero ODP. Available as a self-contained water-cooled unit or air-cooled remote, the HFO3 will provide you with years of dependable service without the fear of refrigerant obsolescence.
Heavy-duty industrial construction, automatic operation, energy efficiency, and the best warranty in the business make the Vogt HFO3 Series the only “clear” choice for your ice-making needs.
HFO3 Standard Features:
- 25 Year Evaporator Warranty
- R513A Refrigerant
- Allen-Bradley PLC with thermocouples, pressure transducers, and multiple built-in safeties

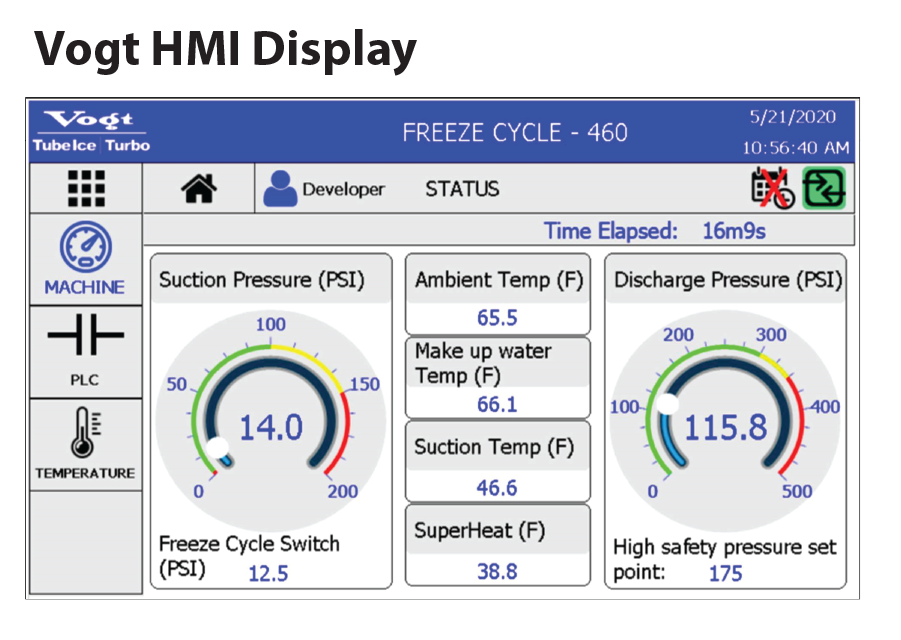

- 10.1” wide HMI display with remote access capability* Water-cooled or remote air-cooled operation
- Export crating (ISPM-15 Rated)
- Electronic Ice bin thermostat
- Voltage – 208/230v.,3p.,60hz.
*Requires connection to Internet (ethernet connection)
HFO5 Series Options:
• Voltage – 460v.,3p.,60hz.
• Voltage – 400v.,3p.,50hz.
• Voltage – 200v.,3p.,50hz. or 230v.,3p.,50hz.
• Voltage – 575v.,3p.,60hz.
• High ambient air-cooled condenser
• Electro-fin coated condenser
• Condenser for sea water
• Dual Ice Feature (cylinder and crushed ice)
• Cutter for 1-1/2” long ice
• Stainless steel casings
• Power monitor (for 60hz.)
• “CE” Approval (400v, 50hz only)
• Canadian Registration Number (CRN)
• Export crating (ISPM-15 Rated)
The HFO5 Series Tube-Ice® Machine
HFO5-1” , HFO5-1 1/4” & HFO5-1 1/2”
Replacing the Vogt® P112F Series, the HFO5 Series Tube-Ice® machine continues the Vogt® tradition of providing long-lasting machine reliability, delivered capacity, and lower energy cost solutions. This 5 tons of ice per day machine utilizes HFO refrigerants with low GWP and zero ODP.
Available as a self-contained water-cooled unit or air-cooled remote, the HFO5 will provide you with years of dependable service without the fear of refrigerant obsolescence.
Heavy-duty industrial construction, automatic operation, energy efficiency, and the best warranty in the business make the Vogt® HFO5 Series the only “clear” choice for your ice-making needs.
HFO5 Standard Features:
- 25 Year Evaporator Warranty
- R513A Refrigerant
- Allen-Bradley PLC with thermocouples, pressure transducers, and multiple built-in safeties
- 10.1” wide HMI display with remote access capability* Water-cooled or remote air-cooled operation
- Export crating (ISPM-15 Rated)
- Electronic Ice bin thermostat
- Voltage – 208/230v.,3p.,60hz.
*Requires connection to Internet (ethernet connection)
HFO5 Series Options:
• Voltage – 460v.,3p.,60hz.
• Voltage – 400v.,3p.,50hz.
• Condenser for sea water
• Stainless steel casings
• “CE” Approval (400v, 50hz only)
• Canadian Registration Number (CRN)
• Australian Wiring Code
• Dual Ice Feature (cylinder and crushed ice)
• Cutter for 1-1/2″ long ice
• Cutter for crushed ice operation
Download Spec Sheet HERE

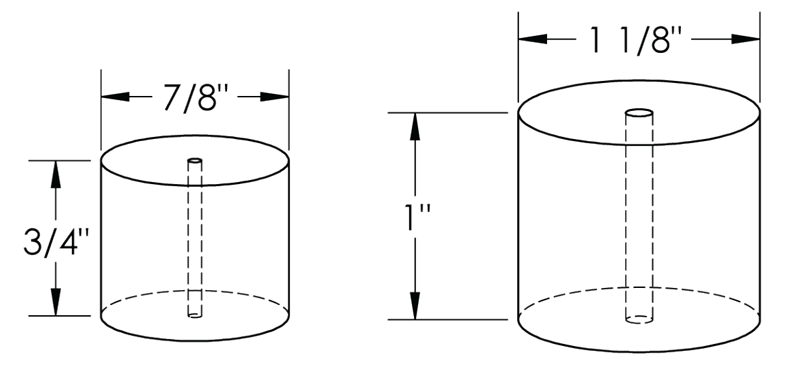

HFO5 Tube-Ice® Available in Three Ice Sizes:
- Tube-Ice approximately 7/8″ Diameter x 1″ Long
- Tube-Ice approximately 1 1/8″ Diameter x 1″ Long
- Tube-Ice approximately 1 3/8″ Diameter x 1″ Long
Download Service Info HERE
The HFO10 Series Tube-Ice® Machine
HFO10-1” , HFO10-1 1/4” & HFO10-1 1/2”
Replacing the Vogt® P118F and P18XT Series models, the HFO10 Series with a capacity of 10 tons of ice per day is Vogt’s® new champion of the mid-size Tube-Ice® machine line utilizing HFO refrigerants with low GDP and low ODP. Available as a self-contained water-cooled unit, the HFO10 will provide you with years of dependable service without the fear of refrigerant obsolescence.
Heavy-duty industrial construction, automatic operation, energy efficiency, and the best warranty in the business make the Vogt HFO10 Series the only “clear” choice for your ice-making needs.
HFO10 Standard Features:
- 25-Year Evaporator Warranty
- 3-Year Domestic U.S. Parts Warranty (Includes compressor)
- Voltage – 208/230v.,3p.,60hz.
- HFO Refrigerant (40+ year refrigerant)
- Highly efficient, reliable Bitzer screw compressor
- Water-cooled operation
- Export crating (ISPM-15 Rated)
- Power monitor on 50hz units
HFO10 Series Options:
• Voltage – 460v.,3p.,60hz.
• Voltage – 400v.,3p.,50hz.
• Electro-fin coated condenser
• Condenser for sea water
• PLC Control panel (programmable logic controller)
• Cutter for 1-1/2” long ice
• Stainless steel casings
• Remote switch box
• Power monitor (for 60hz.)
• “CE” Approval (400v, 50hz only)
• Canadian Registration Number (CRN)
Download Spec Sheet HERE
HFO10 Tube-Ice® Available in Three Ice Sizes:
- Tube-Ice approximately 7/8″ Diameter x 1″ Long
- Tube-Ice approximately 1 1/8″ Diameter x 1″ Long
- Tube-Ice approximately 1 3/8″ Diameter x 1″ Long
Download Service Info HERE
