1-2 Tons of Ice Per 24hr
Automatic ICE™ Systems uses Vogt® ice machines in our smaller capacity, 1-2 ton per day, ice-making systems.
Click HERE to learn about The Vogt® Advantage

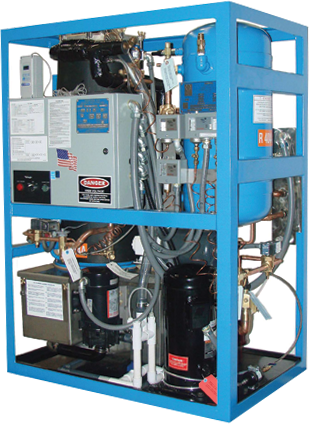

Vogt® HES Series
HES Tube-Ice® Available in Two Ice Sizes:

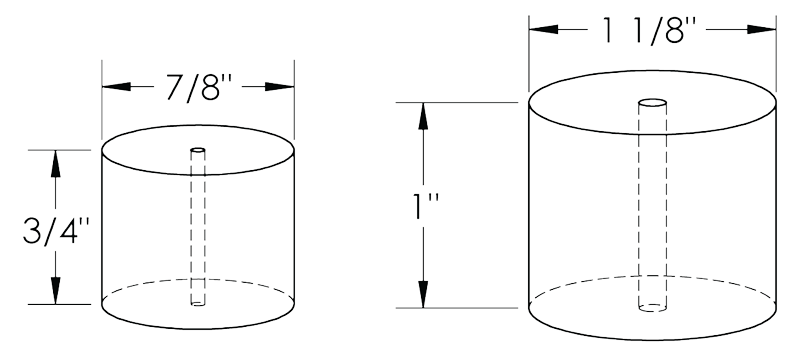

Standard Ice Size:
- Tube-Ice approximately 7/8″ Diameter x 3/4″ Long (S models)
- Tube-Ice approximately 1 1/8″ Diameter x 1″ Long (M models)
- Crushed Ice 3/16″ to 1/4″ Thick on all models (approximately 32 lbs./cubic foot)

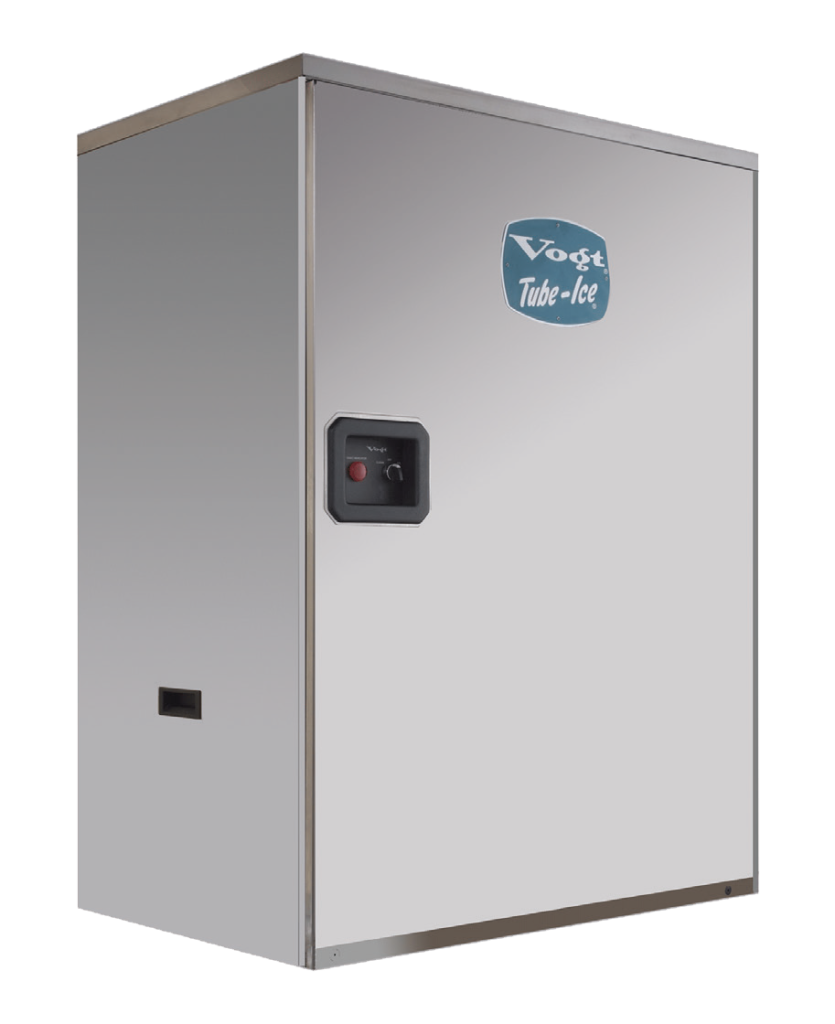

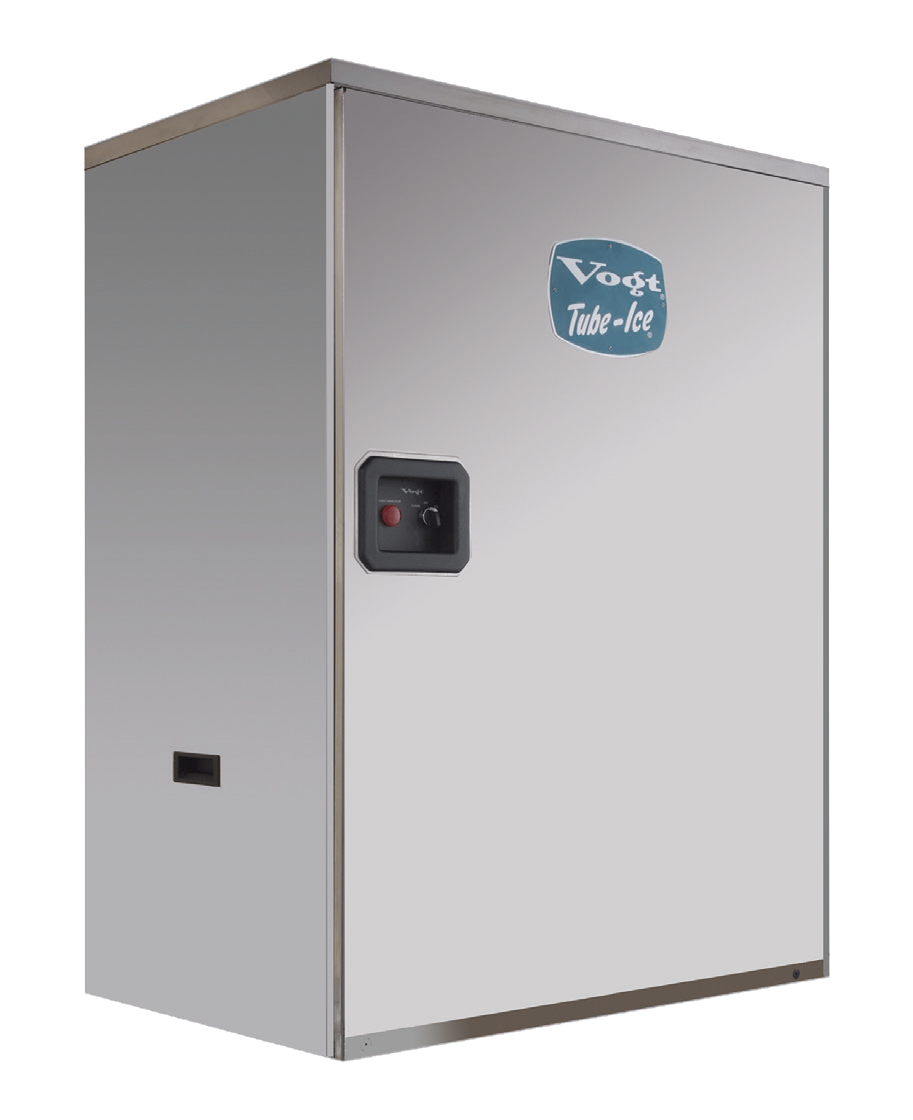

The HES (Hi-Efficiency) Series with a capacity range of 3000 to 4000 pounds of ice per day is the preferred choice of ice machine for thousands of food service applications worldwide.
Heavy-duty industrial construction, automatic operation, energy efficiency, and the best warranty in the business make the Vogt® HES Series the only “clear” choice for your ice-making needs.
HES Series Standard Features:
- 25-Year Evaporator Warranty
- Voltage – 208/230V., 3P., 60Hz.
- Refrigerant 452a
- Cutter for cylinder (default) or crushed ice operation
- Copeland Performance Alert power monitor
- Electronic ice bin thermostat
- Stainless steel casings
- Integral drip pan
- Self-Diagnostic indicator light
- Water-cooled or remote air-cooled operation
- PLC Controls
HES Series Options:
• Voltage – 460V.,3ph.,60Hz.
• Voltage – 400V.,3ph.,50Hz.
• Voltage – 200V.,3ph.,50Hz.
• High ambient air-cooled condenser
• Electro-fin coated condenser
• High pressure (200psig) water condenser/regulator
• Casing security screws (Correctional usage)
• Cutter for 1-1/2” long ice
• Remote switch box
• Flush valve assembly
• “CE” Approval (400V, 50Hz only)
• Canadian Registration Number (CRN)
• Export crating (ISPM-15 Rated)
Download Service Info HERE
Download Spec Sheet HERE
